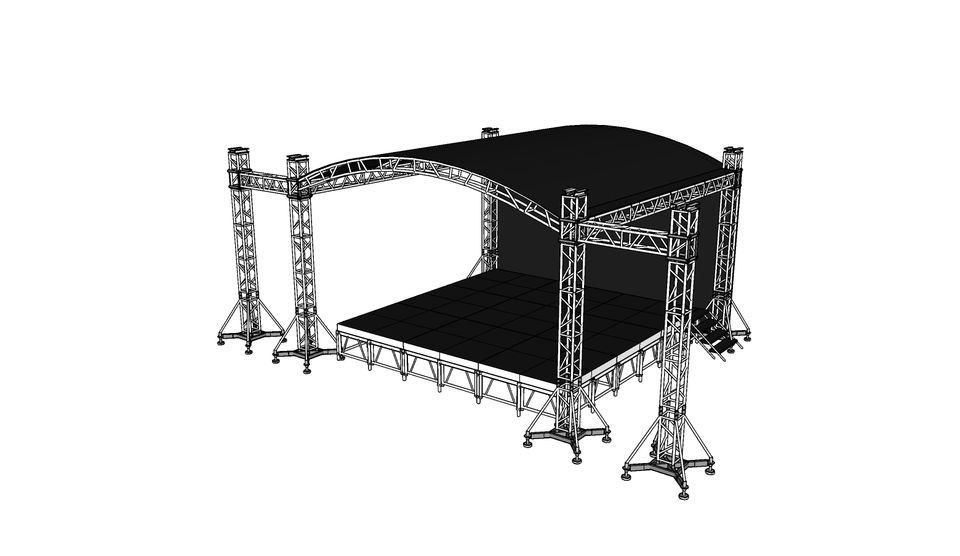

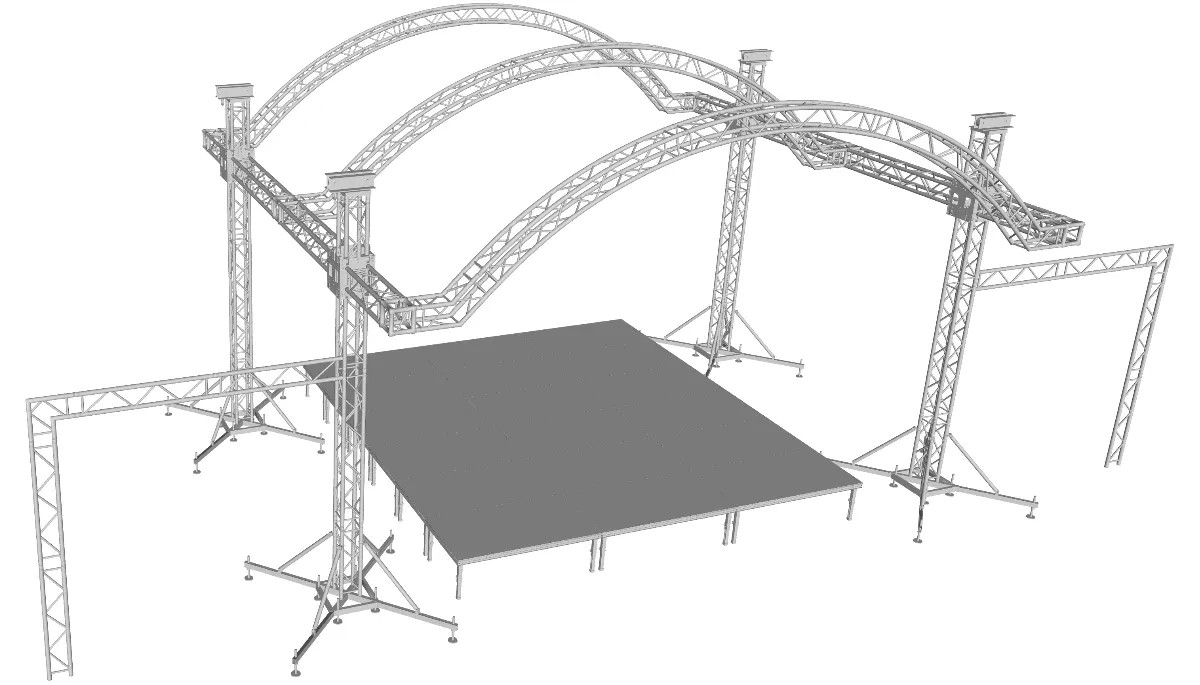

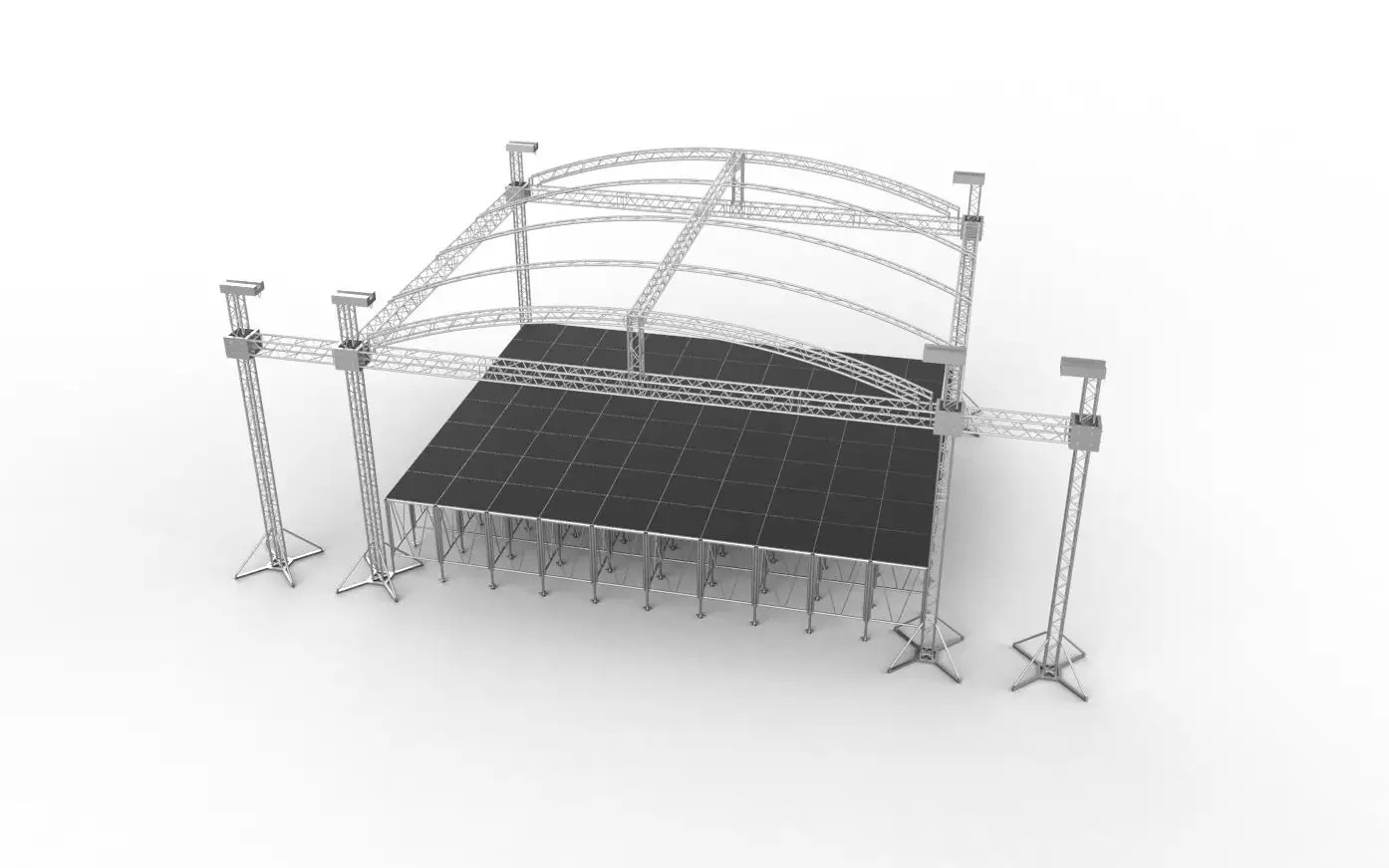

●Pitched roof structure for temporary events
	●Self-climbing towers 10x6m,10x8m,12x10m options available
●Fast connection for quick, simple and secure assembly
●Operate with manual chain block or electric chain hoist
●Supplied complete with internal wind bracing wires & connection accessories
●Full structural calculation report & build manual available
●PVC roof colour and side walls options
●Integrated tower base / stage components available

●PA wing options available on request












					Stage size ›


					12x10 m


					10x8 m


					10x6 m




					Dimensions




					Internal width


					12.30 m


					10.42 m


					10.42 m






					Overall external width


					14.64 m


					 12.74 m


					12.74 m






					Internal depth


					10.60 m


					 8.65 m


					6.65 m






					Overall external depth


					12.99 m


					 10.97 m


					10.97 m






					Clearance


					7.12 m


					7.12 m


					7.12 m






					Overall height


					9.43 m


					9.14 m


					9.14 m






					PA wing - internal width


					3.15 m


					3.15 m


					3.15 m






					PA wing - overall external width


					 3.44 m


					 3.44 m


					 3.44 m


















































					Stage size ›


					12x10 m


					10x8 m


					10x6 m




					Loading

capacity

					Main grid


					Uniformly distributed (UDL)


					3480 kgs


					2160 kgs


					1920 kgs






					Point loads 8x400kgs+ UDL total


					4600 kgs


					4140 kgs


					3980 kgs




					PA wing


					Central Point load (CPL)


					1500 kgs


					1500kgs


					1500kgs





					Cantilever


					Point load (CPL)


					150kgs


					150


					150kgs
